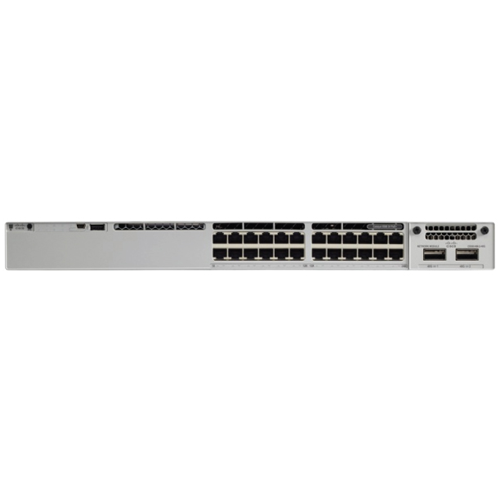

C9300-24P-A New Cisco Catalyst 24 Ports Managed UPOE Switch with Network Advantage

MPN: C9300-24P-A | UPC: 0 889728051682 | CONDITION: New

Price of C9300-24P-A

$2,366.00

*Including free ground shipping to USA

Availability: 2 units in stock

Our Shipping Partners

Standard shipping is 5-7 Business Days

100% Secure Payments

Payments processed via STRIPE

Secure Payments

Pay Securely

Fast Shipping

Overnight Available

Save Big

Affordable Prices

9-5 Support

Call Us for Help

Product Details

Main Specifications

Product Description	Cisco Catalyst 9300 – Network Advantage – switch – 24 ports – managed – rack-mountable
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)	PoE+
PoE Budget	445 W
Performance	Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity	IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power	AC 120/230 V (50 – 60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 17.5 in x 1.7 in
Weight	16.31 lbs
System Requirements	Cisco IOS Universal
Manufacturer Warranty	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)	PoE+
PoE Budget	445 W
Performance	Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity	IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status

Expansion / Connectivity

Interfaces	48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply – hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50 – 60 Hz)

Miscellaneous

MTBF	299,000 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

OS Required

Cisco IOS Universal

Dimensions & Weight

Width	17.5 in
Depth	17.5 in
Height	1.7 in
Weight	16.31 lbs

Manufacturer Warranty

Service & Support

Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days

Environmental Parameters

Min Operating Temperature	23 Degree Fahrenheit
Max Operating Temperature	113 Degree Fahrenheit
Humidity Range Operating	5 – 90% (non-condensing)
Min Storage Temperature	-40 Degree Fahrenheit
Max Storage Temperature	158 Degree Fahrenheit
Humidity Range Storage	5 – 90% (non-condensing)
