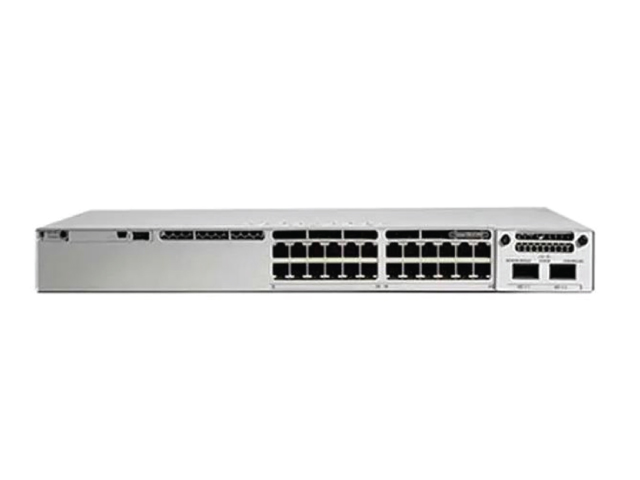

Refurbished Cisco Catalyst 9300-24S-A Switch with Network Advantage – 24 ports Managed Switch UPOE

MPN: C9300-24S-A | UPC: 0 889728193597 | CONDITION: Refurbished

Price of C9300-24S-A-REFURBISHED

$12,480.00

*Including free ground shipping to USA

Availability: 3 units in stock

Our Shipping Partners

Standard shipping is 5-7 Business Days

100% Secure Payments

Payments processed via STRIPE

Secure Payments

Pay Securely

Fast Shipping

Overnight Available

Save Big

Affordable Prices

9-5 Support

Call Us for Help

Product Details

Main Specifications

Product Description	Cisco Catalyst 9300 – Network Advantage – switch – 24 ports – managed – rack-mountable
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x Gigabit SFP
Performance	Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity	IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power	AC 120/230 V (50 – 60 Hz)
Power Redundancy	Yes
Dimensions (WxDxH)	17.5 in x 19.2 in x 1.7 in
Weight	16.84 lbs
System Requirements	Cisco IOS Universal
Manufacturer Warranty	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x Gigabit SFP
Performance	Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity	IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status

Expansion / Connectivity

Interfaces	24 x Gigabit LAN SFP ¦ 1 x USB 2.0
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply – hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Yes
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50 – 60 Hz)

Miscellaneous

MTBF	284,130 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

Software Included	Cisco ONE StealthWatch License Term – 25 Flow Licenses, 25 x Cisco ONE ISE BASE Tracker Licenses Term (5 years), 25 x Cisco ONE ISE PLUS Tracker Licenses Term (5 years), Network Plug-n-Play License
OS Required	Cisco IOS Universal

Dimensions & Weight

Width	17.5 in
Depth	19.2 in
Height	1.7 in
Weight	16.84 lbs

Manufacturer Warranty

Service & Support

Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days

Environmental Parameters

Min Operating Temperature	23 Degree Fahrenheit
Max Operating Temperature	113 Degree Fahrenheit
Humidity Range Operating	5 – 90% (non-condensing)
Min Storage Temperature	-40 Degree Fahrenheit
Max Storage Temperature	158 Degree Fahrenheit
Humidity Range Storage	5 – 90% (non-condensing)
