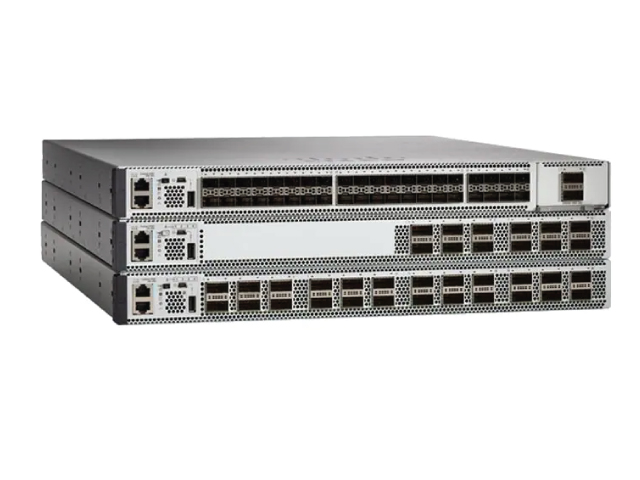

C9500-12Q-E Refurbished Cisco Catalyst 9500 12-port 40G switch, NW Essentials License

MPN: C9500-12Q-E | UPC: 0 889728035408 | CONDITION: Refurbished

Price of C9500-12Q-E-REFURBISHED

$8,765.00

*Including free ground shipping to USA

Availability: 2 units in stock

Our Shipping Partners

Standard shipping is 5-7 Business Days

100% Secure Payments

Payments processed via STRIPE

Secure Payments

Pay Securely

Fast Shipping

Overnight Available

Save Big

Affordable Prices

9-5 Support

Call Us for Help

Product Details

The CISCO Catalyst 9500 Series

The Catalyst 9500-12Q is a model of the Cisco Catalyst 9500 series of switches. This switch is designed for enterprise data center and service provider deployments. Moreover, it is a fixed-configuration, stackable switch that provides 12 40/100 GbE QSFP+ uplink ports and 12 40 GbE QSFP+ downlink ports.

Additionally, the Catalyst 9500-12Q supports advanced security features such as Cisco TrustSec, Identity-based Firewall, and Advanced Malware Protection (AMP) to protect against network threats. It also supports various network management protocols like SNMP, syslog, and NETCONF. The switch also supports Quality of Service (QoS) and Link Aggregation Control Protocol (LACP) to optimize network performance.

Cisco Catalyst 9500 – Network Essentials – switch – L3 – managed – 12 x 40 Gigabit QSFP – rack-mountable

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Key Selling Points

Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
Platinum-rated AC power supplies
Up to 512,000 Flexible NetFlow (FNF) entries in hardware
Up to 32 MB of shared buffer per ASIC
Up to 64,000 routing entries for high-end campus access and aggregation deployments
IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
Support for both static and dynamic NAT and Port Address Translation (PAT)
Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables

Main Specifications for CISCO Catalyst 9500

Product Description	Cisco Catalyst 9500 – Network Essentials – switch – 12 ports – managed – rack-mountable
Device Type	Switch – 12 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	40 Gigabit Ethernet
Ports	12 x 40 Gigabit QSFP
Performance	Switching capacity (full duplex): 480 Gbps ¦ Forwarding rate: 720 Mpps
Capacity	Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size	64K entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Features	NAT support, IPv6 support, Stateful switchover (SSO), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, MLD snooping, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Flexible NetFlow (FNF), 802.1x authentication, MACsec support, Control plane protection (CoPP), VLAN Double Tagging (Q-in-Q), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Compliant Standards	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power	AC 120/230 V (50 – 60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 21.5 in x 1.7 in
Weight	25.75 lbs
Manufacturer Warranty	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch – 12 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	40 Gigabit Ethernet
Ports	12 x 40 Gigabit QSFP
Performance	Switching capacity (full duplex): 480 Gbps ¦ Forwarding rate: 720 Mpps
Capacity	Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size	64K entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Encryption Algorithm	256-bit AES
Features	NAT support, IPv6 support, Stateful switchover (SSO), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, MLD snooping, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Flexible NetFlow (FNF), 802.1x authentication, MACsec support, Control plane protection (CoPP), VLAN Double Tagging (Q-in-Q), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Compliant Standards	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Processor	1: 2.4 GHz
RAM	16 GB
Flash Memory	16 GB
Built-in Devices	RFID tag
Status Indicators	Status

Expansion / Connectivity

Interfaces

12 x 40Gbit LAN QSFP

Power

Power Device	Internal power supply – hot-plug
Installed Qty	2
Max Supported Qty	2
Power Redundancy	Optional
Power Redundancy Scheme	1+1
Power Provided	950 Watt
Voltage Required	AC 120/230 V (50 – 60 Hz)
Features	Front-to-rear airflow

Miscellaneous

Included Accessories	2 x North America AC Type A power cables
MTBF	179,660 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

Software Included

Cisco IOS Universal, ONE Essentials Low Term

Dimensions & Weight

Width	17.5 in
Depth	21.5 in
Height	1.7 in
Weight	25.75 lbs

Manufacturer Warranty

Service & Support

Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days

Environmental Parameters

Min Operating Temperature	32 Degree Fahrenheit
Max Operating Temperature	104 Degree Fahrenheit
Humidity Range Operating	5 – 90% (non-condensing)
Min Storage Temperature	-4 Degree Fahrenheit
Max Storage Temperature	149 Degree Fahrenheit
Humidity Range Storage	5 – 95% (non-condensing)
