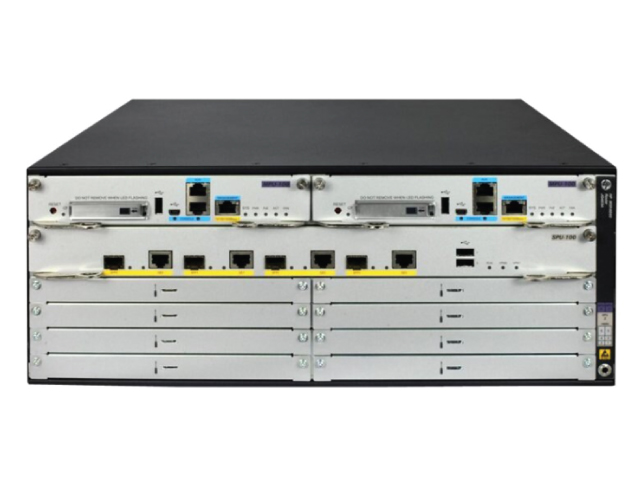

JG403A – HPE Hewlett Packard Enterprise MSR4060 Router Chassis
MPN: JG403A | UPC: 0 886112790448 | CONDITION: New
Price of JG403A
$8,960.00
*Including free ground shipping to USA
Our Shipping Partners
Standard shipping is 5-7 Business Days
100% Secure Payments
Payments processed via STRIPE
- 100% Genuine Equipment
- Best Quality Guarantee
- Free US Ground Shipping
- Quantity Discounts
Secure Payments
Pay Securely
Fast Shipping
Overnight Available
Save Big
Affordable Prices
9-5 Support
Call Us for Help
Product Details
HPE MSR4060 – Modular expansion base – rack-mountable
The HPEMSR4000 Router Series deliver high-performance large branch routing with up to 36 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, VPN, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. With the Open Application Platform module, the MSR4000 Router Series offers a wide range of virtualized applications. Its distributed, modular architecture and high reliability also strengthen the resiliency of large branches.
WHAT’S IN THE BOX – (1) HPEMSR4060 Router Chassis
Reduces Complexity and Simplifies Your Network
The HPEMSR4000 Router Series simplifies your network through integrated routing, switching, security, voice, and VPN, and combines the flexibility of modular upgrades to deliver high-performance large branch routing.
Makes administration easier with HPEIntelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Enhances Time to Service and Branch Performance
The HPEMSR4000 Router Series offers high-performance routing with up to 36 Mpps forwarding and 28 Gbps of IPSec encryption throughput to meet the bandwidth demands of the branch.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Delivers powerful aggregation capacity and high port density to satisfy the largest branches.
Increases Your Return on Investment
The HPEMSR4000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
Boosts Large Branch Agility and Resiliency
The HPEMSR4000 Router Series is built on distributed architecture with separate hardware data and control planes for increased resiliency.
Facilitates high reliability with 4G/LTE and 3G WAN, dual MPUs, redundant power supplies.
Gives you an open standards approach to networking with the Open Application Platform module by supporting HPEAllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).
MAIN SPECIFICATIONS | |
| Product Description | HPEMSR4060 – modular expansion base – desktop, rack-mountable |
| Device Type | Modular expansion base |
| Enclosure Type | Desktop, rack-mountable – modular – 4U |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 18.9 in x 6.9 in |
| Weight | 45.52 lbs |
| Manufacturer Warranty | 1-year warranty |
EXTENDED SPECIFICATIONS | |
| General | |
| Device Type | Modular expansion base |
| Enclosure Type | Desktop, rack-mountable – modular – 4U |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386 |
| Expansion / Connectivity | |
| Interfaces | Management: 1 x RJ-45 ? Management: 1 x RS-232C/USB |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot ? 6 (total) / 6 (free) x High-performance Multifunction Interface Module (HMIM) |
| Installed Modules Qty (Max) | 0 (installed) / 9 (max) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 0 (installed) / 4 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 178.66 years |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18.9 in |
| Height | 6.9 in |
| Weight | 45.52 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 113 ?F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
?
| Weight | 52 lbs |
|---|---|
| SKU | JG403A |
| Condition | New |
| Brand | HPE |
| GTIN | 0 886112790448 |
- The warranty for refurbished units is 30 days.
- The warranty for New units is as per the manufacturer’s terms and conditions.
