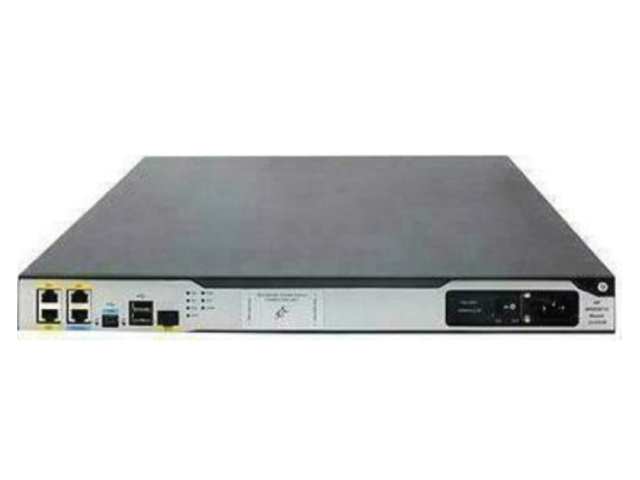

JG409B – HPE MSR3012 – Router – GigE – rack-mountable.
MPN: JG409B | UPC: 0 1 90017 003726 | CONDITION: New
Price of JG409B
$1,568.00
*Including free ground shipping to USA
Our Shipping Partners
Standard shipping is 5-7 Business Days
100% Secure Payments
Payments processed via STRIPE
- 100% Genuine Equipment
- Best Quality Guarantee
- Free US Ground Shipping
- Quantity Discounts
Secure Payments
Pay Securely
Fast Shipping
Overnight Available
Save Big
Affordable Prices
9-5 Support
Call Us for Help
Product Details
HPE MSR3012 – Router – GigE – rack-mountable
The HPEMSR3000 Router Series delivers high-performance medium to large branch routing up to 5 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying management of your corporate WAN. With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.
WHAT’S IN THE BOX – (1) HPEMSR3012 AC Router
Reduces Complexity and Simplifies Your Network
The HPEMSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
Makes administration easier with HPEIntelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Enhances Time to Service and Branch Performance
The HPEMSR3000 Router Series offers high performance routing with up to 5 Mpps forwarding and 3.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Satisfies medium to large branches with advanced hardware architecture and high port density.
Increase Your Return on Investment
The HPEMSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
Boosts Agility and Resiliency
The HPEMSR3000 Router Series provides branch service and business continuity with 4G/LTE and 3G WAN.
With the Open Application Platform module, support HPEAllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).
Delivers an open standards approach to your network infrastructure.
With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.
MAIN SPECIFICATIONS | |
| Product Description | HPEMSR3012 – router – desktop, rack-mountable |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: up to 2.6 Mpps |
| Capacity | Routing table entries: 200000 ? Forwarding table entries: 200000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), DHCP relay, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 18.9 in x 1.7 in |
| Weight | 15.76 lbs |
EXTENDED SPECIFICATIONS | |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: up to 2.6 Mpps |
| Capacity | Routing table entries: 200000 ? Forwarding table entries: 200000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), DHCP relay, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386 |
| Processor | 1 x 1 GHz |
| RAM | 1 GB (installed) / 1 GB (max) – DDR3 SDRAM |
| Flash Memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ? 1 x Ethernet 1000 – SFP (mini-GBIC) ? USB 2.0: 2 x 4 pin USB Type A ? Management: 1 x auxiliary ? Management: 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot ? 1 (total) / 1 (free) x High-performance Multifunction Interface Module (HMIM) ? 2 (total) / 2 (free) x Smart Interface Card (SIC) |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 52.56 years |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18.9 in |
| Height | 1.7 in |
| Weight | 15.76 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 ?F |
| Max Operating Temperature | 113 ?F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
?
| Weight | 21 lbs |
|---|---|
| SKU | JG409B |
| Condition | New |
| Brand | HPE |
| GTIN | 0 1 90017 003726 |
- The warranty for refurbished units is 30 days.
- The warranty for New units is as per the manufacturer’s terms and conditions.
