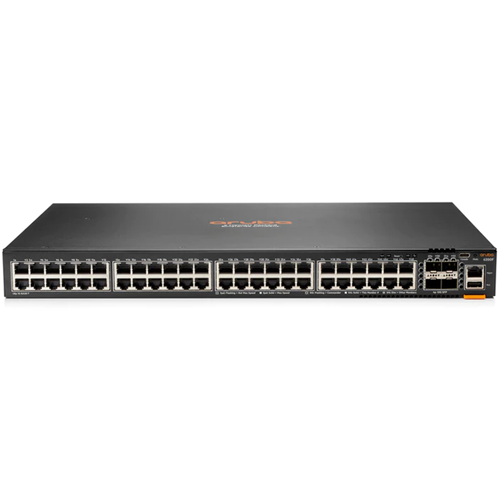

JL726A HPE Aruba 6200F 48G 4SFP+ Switch: Unveiling Power and Versatility

Introduction

In the ever-evolving landscape of networking technology, businesses are continuously searching for solutions that offer both performance and flexibility. The JL726A HPE Aruba 6200F 48G 4SFP+ Switch emerges as a robust contender, bringing together advanced features, scalability, and efficient management capabilities. In this article, we delve into the key aspects that make the Aruba JL726A an ideal choice for organizations seeking to elevate their network infrastructure.

Specifications of JL726A

Power consumption: 68W at 230 VAC
Input voltage: 100V-120V/200V-240V
Ports: 48x 10/100/1000BASE-T ports, 4x 1/10G SFP ports, 1x USB-C Console Port, 1x OOBM, 1x USB Type-A Host port, 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Latency: 1 Gbps: 2.28 μSec, 10 Gbps: 1.46 μSec
Routing/switching capacity: 176 Gbps
Stacking capabilities: 8 members
Throughput: Up to 130.9 Mpps
Memory and processor: Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power supply name: Fixed power supply (200W)
Weight: 4.45 kg (9.81 lbs)
Dimensions: 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

High-Performance Networking

At the core of the Aruba JL726A lies a powerful architecture designed to deliver high-performance networking. Equipped with 48 Gigabit Ethernet ports, this switch provides a solid foundation for building a fast and reliable local area network (LAN). Additionally, the inclusion of four Small Form-Factor Pluggable Plus (SFP+) ports ensures seamless integration with high-speed fiber-optic networks, catering to the demands of data-intensive applications.

The Gigabit Ethernet ports operate at speeds of 10/100/1000 Mbps, offering versatility to accommodate a wide range of devices. This makes the JL726A suitable for organizations with diverse network requirements, allowing for the connection of both legacy and modern devices without compromising on speed or compatibility.

Scalability for Growing Networks

Businesses experiencing growth require networking solutions that can scale seamlessly. The Aruba JL726A addresses this need by supporting stacking of up to eight switches. This stacking capability not only simplifies network management but also enhances redundancy and resiliency.

Stacking enables organizations to create a unified and highly scalable network fabric. As the network expands, the stacking feature ensures that management complexities remain low, providing a flexible and adaptive networking environment. This scalability feature is particularly beneficial for enterprises with dynamic network requirements, allowing them to expand their infrastructure without compromising on performance.

Advanced Layer 2 Management

Operating at Layer 2 of the OSI model, the Aruba JL726A focuses on data link layer functions, making it well-suited for efficiently managing local area networks and optimizing device performance.

The switch supports a variety of Layer 2 management features, including VLAN support, Spanning Tree Protocol (STP) for loop prevention, and link aggregation for improved bandwidth utilization. These features contribute to the creation of a stable and well-organized network infrastructure, enhancing the overall efficiency of data transfer and communication within the organization.

Enhanced Security Measures

In an era where cybersecurity is a top concern, the Aruba JL726A prioritizes network security with a suite of advanced features. The switch supports IEEE 802.1X network access control, ensuring that only authorized devices gain access to the network. This authentication mechanism, coupled with MAC address-based filtering, adds an additional layer of security against unauthorized access.

The switch also facilitates secure remote management through encrypted protocols such as SSH and SNMPv3. These security measures not only protect against unauthorized access but also contribute to compliance with industry regulations and data protection standards. The enhanced security features make the JL726A a reliable choice for organizations looking to fortify their network against potential threats.

Quality of Service (QoS) for Optimal Performance

In a network where diverse applications compete for bandwidth, ensuring optimal performance for critical applications is paramount. The Aruba JL726A addresses this challenge by incorporating advanced Quality of Service (QoS) mechanisms.

The switch supports traffic prioritization based on various parameters, including IP address, DSCP values, and VLAN tags. This granular control over traffic enables organizations to allocate bandwidth strategically, ensuring that mission-critical applications receive the necessary resources for optimal performance. Whether it’s voice and video communication or data-intensive applications, the JL726A excels in delivering a consistent and reliable user experience.

Efficient Management with Aruba Central

Efficient management is a cornerstone of a well-functioning network. The Aruba JL726A can seamlessly integrate into the Aruba Central cloud management platform. It provides a centralized and intuitive interface for monitoring and configuring network devices.

Aruba Central simplifies day-to-day operations by offering a single-pane-of-glass view of the entire network. Administrators can monitor device health, configure settings, and apply updates remotely, reducing the need for on-site intervention. This cloud-based management approach not only enhances operational efficiency but also enables organizations to scale their network management capabilities without the need for extensive infrastructure investments.

Conclusion

The JL726A HPE Aruba 6200F 48G 4SFP+ Switch stands out as a powerful and versatile solution. It is a great option for organizations seeking a reliable and scalable networking infrastructure. With its focus on performance, scalability, security, and efficient management, this switch caters to the evolving needs of modern enterprises. As businesses continue to navigate the challenges of digital transformation, the Aruba JL726A proves itself as a robust and future-ready networking solution, providing the foundation for high-performance and adaptive networks.
