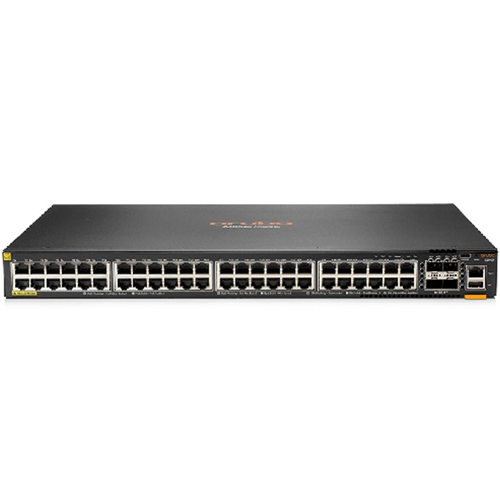

JL727A HPE Aruba 6200F 48G 48-Ports Class4 PoE 4SFP+ 370W Switch: Powering Connectivity

Introduction

In the dynamic landscape of networking infrastructure, the demand for high-performance switches with advanced capabilities continues to grow. The JL727A HPE Aruba 6200F 48G 48-Ports Class4 PoE 4SFP+ 370W Switch stands out as a formidable solution, integrating a robust set of features designed to meet the evolving needs of modern organizations. In this article, we explore the key attributes that make the Aruba JL727A a compelling choice for businesses seeking to enhance their network capabilities.

Specifications for JL727A

Power consumption: 76W at 230 VAC
Input voltage: 100V-120V/200V-240V
Ports: 48x 10/100/1000BASE-T Class 4 PoE ports, 4x 1/10G SFP ports, Supports PoE Standards IEEE 802.3af, 802.3at, 1x USB-C Console Port, 1x OOBM, 1x USB Type-A Host port, 1x Bluetooth Adapter to be used with Aruba CX, Mobile App
Latency: 1 Gbps: 2.28 μSec, 10 Gbps: 1.46 μSec
Routing/switching capacity: 176 Gbps
Stacking capabilities: 8 members
Throughput: Up to 130.9 Mpps
Memory and processor: Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power supply name: Fixed power supply (500W), Up to 370W of Class 4 PoE Power
PoE capability: 370W
Weight: 5.05 kg (11.13 lbs)
Dimensions: 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

High-Performance Networking

The foundation of the Aruba JL727A is its high-performance architecture, engineered to meet the demands of data-intensive applications and growing network environments. With 48 Gigabit Ethernet ports, this switch provides a substantial backbone for building a fast and reliable local area network (LAN). Additionally, the inclusion of four Small Form-Factor Pluggable Plus (SFP+) ports ensures seamless integration with high-speed fiber-optic networks, catering to the need for increased bandwidth and low-latency connectivity.

Operational Versatility with PoE

One standout feature of the JL727A is its Class4 Power over Ethernet (PoE) capability. With a power budget of 370W, this switch can deliver power to connected devices, such as IP cameras, wireless access points, and Voice over IP (VoIP) phones, over the Ethernet cables. This eliminates the need for separate power sources, simplifying deployment and reducing the overall cost of network infrastructure.

The Class4 PoE standard, adhering to IEEE 802.3at, provides increased power delivery compared to standard PoE switches. This enhanced capability is crucial for supporting power-hungry devices, ensuring optimal performance for devices that demand higher power requirements.

Scalability for Growing Networks

As businesses expand, so does the need for scalable networking solutions. The Aruba JL727A addresses this requirement by supporting stacking of up to eight switches. This stacking capability not only simplifies network management but also enhances redundancy and resiliency.

Stacking allows organizations to create a unified and highly scalable network fabric. As the network grows, the stacking feature ensures that management complexities remain low, providing a flexible and adaptive networking environment. This scalability feature is particularly beneficial for enterprises with dynamic network requirements, allowing them to expand their infrastructure without compromising on performance.

Advanced Layer 2 Management

Operating at Layer 2 of the OSI model, the Aruba JL727A focuses on data link layer functions, making it an ideal choice for efficiently managing local area networks and optimizing device performance.

The switch supports a range of Layer 2 management features, including VLAN support, Spanning Tree Protocol (STP) for loop prevention, and link aggregation for improved bandwidth utilization. These features contribute to the creation of a stable and well-organized network infrastructure, enhancing the overall efficiency of data transfer and communication within the organization.

Enhanced Security Measures

Security is a paramount concern in today’s interconnected world, and the Aruba JL727A addresses this with a suite of advanced features. The switch supports IEEE 802.1X network access control, ensuring that only authorized devices gain access to the network. This authentication mechanism, combined with MAC address-based filtering, adds an additional layer of security against unauthorized access.

The switch also facilitates secure remote management through encrypted protocols such as SSH and SNMPv3. These security measures not only protect against unauthorized access but also contribute to compliance with industry regulations and data protection standards. The enhanced security features make the JL727A a reliable choice for organizations looking to fortify their network against potential threats.

Quality of Service (QoS) for Optimal Performance

In a network where diverse applications contend for bandwidth, ensuring optimal performance for critical applications is crucial. The Aruba JL727A addresses this challenge by incorporating advanced Quality of Service (QoS) mechanisms.

The switch supports traffic prioritization based on various parameters, including IP address, DSCP values, and VLAN tags. This granular control over traffic enables organizations to allocate bandwidth strategically, ensuring that mission-critical applications receive the necessary resources for optimal performance. Whether it’s voice and video communication or data-intensive applications, the JL727A excels in delivering a consistent and reliable user experience.

Efficient Management with Aruba Central

Efficient management is key to maintaining a well-functioning network. The Aruba JL727A can seamlessly integrate into the Aruba Central cloud management platform, providing a centralized and intuitive interface for monitoring and configuring network devices.

Aruba Central simplifies day-to-day operations by offering a single-pane-of-glass view of the entire network. Administrators can monitor device health, configure settings, and apply updates remotely, reducing the need for on-site intervention. This cloud-based management approach not only enhances operational efficiency but also enables organizations to scale their network management capabilities without the need for extensive infrastructure investments.

Conclusion

The JL727A HPE Aruba 6200F 48G 48-Ports Class4 PoE 4SFP+ 370W Switch emerges as a versatile and powerful solution for organizations seeking to elevate their network infrastructure. With its focus on performance, enhanced PoE capabilities, security features, and efficient management, this switch caters to the evolving needs of modern enterprises. As businesses continue to navigate the challenges of digital transformation, the Aruba JL727A establishes itself as a reliable and future-ready networking solution, providing the foundation for high-performance and adaptive networks.
